Slider Beds



Slider beds are available as a standard range, matched to the timing belt width. The preferred delivery length is 2000 mm. Cuts to length shorter than 2000 mm are available. The material ia UHMW polyethylene. This material has a low friction coefficient and is also wear resistant. The sliding friction value between standard polyurethane and low-pressure polyethylene is ~ 0.3.
The C profile is made of zinc plated sheet steel. The cut out is intended for fastening screws. The C profile has no bore holes.
Due to the relatively large expansion of the sliding material under temperature, provide expansion gaps on the rail stucture.
Approximate formula for the linear expansion is 2mm/10C temperature difference over 1000 mm of length.

 For further information please contact us.






Slider Beds Without Edge Guide

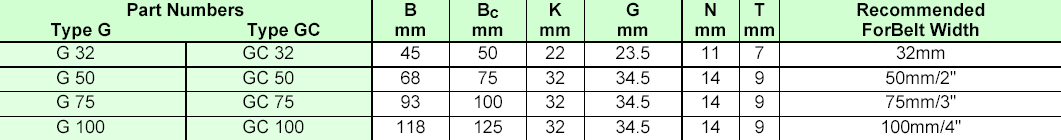

Slider beds without edge guiding can be used with all our polyurethane timing belts. They are recommended for all conveying applications with minimal side loads.


         Type G               Type GC





Slider Beds With Edge Guide

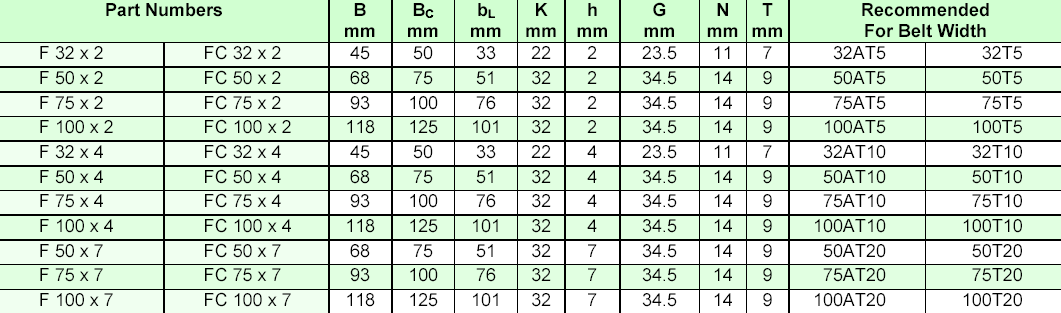

Slider beds with edge guiding are recommended for applications where the timing belt must be guided due to side thrusts.


         Type F               Type FC




Slider Beds For Self Tracking Belts

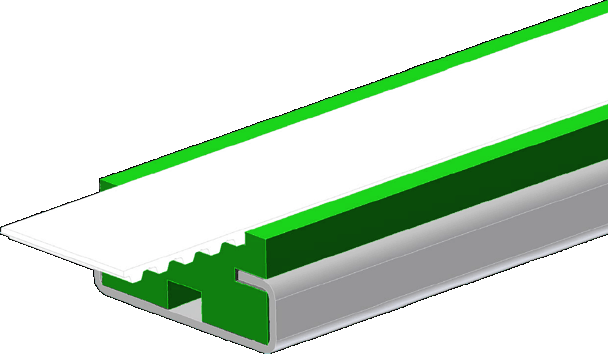

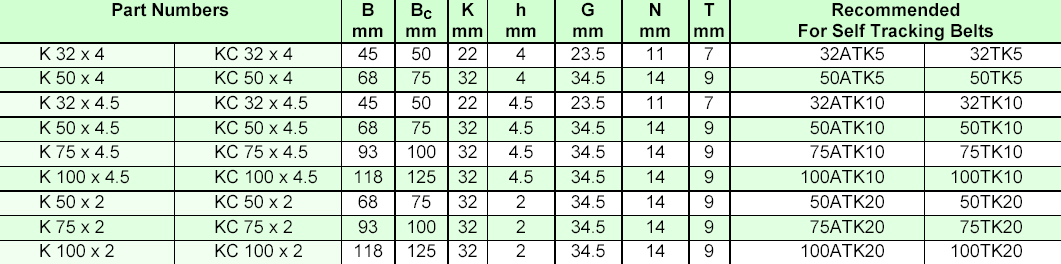

Slider beds with V- groove are used in conjunction with self tracking belts.


         Type K               Type KC
